8x32 sk6812 matrix rgbw matrix

8x32 Sk6812rgbw Led matrix Sk6812 Rgbw matrix

TS-W2812-256-RGBW
minimum order
1 piece
Quantity:
$27.00 - $30.00 / piece
Contact Now
add to cart
  • 8x32 sk6812 matrix rgbw matrix
  • Control Mode:App Control
  • Model Number:TS-W2812-256
  • Brand Name:TS
  • Place of Origin:Guangdong, China
  • Application:Hotel
  • Certification:CE, RoHS
  • Input Voltage(V):DC5V
  • Lamp Body Material:Copper
  • Lamp Luminous Flux(lm):18lm
  • Light Source:LED
  • Support Dimmer:Yes
  • Warranty(Year):3-Year
  • Color Temperature(CCT):Addressable
  • IP Rating:IP20/IP65/IP67/IP68
  • LED Quantity:256LEDs/pcs
  • Warranty:2years
  • PCB size:80*320mm
  • IC chip:sk6812
  • LED signal:SPI
  • View angle:140 degree
  • Type:Flex LED Strips
  • Lamp Power:82W
  • CRI (Ra>):80
  • Working Lifetime(Hour):50000
  • 8x32 sk6812 matrix rgbw matrix
  • 8x32 sk6812 matrix rgbw matrix
8×32 SK6812 RGBW LED Pixel Matrix Panel - Product Introduction
Product Overview
The 8x32 sk6812 matrix rgbw matrix is a high-resolution addressable LED panel featuring 256 individually controllable SK6812 RGBW LEDs on a black PCB. Designed for dynamic text displays, pixel art, and custom lighting projects, it delivers vibrant full-color visuals with dedicated warm/cool white channels, ideal for IoT devices, gaming setups, decorative signs, and creative installations.
Key Features
  • 256 Individually Addressable RGBW Pixels: 8x32 sk6812 matrix rgbw matrix, each with integrated RGBW driver IC for precise control of color, brightness, and animation.
  • Full RGB + Pure White Control:8x32 sk6812 matrix rgbw matrix, 24-bit true RGB color (16.7 million colors) plus dedicated white LED channel for tunable warm/cool white light, perfect for both decorative and functional lighting.
  • SK6812 RGBW Technology: 8x32 sk6812 matrix rgbw matrix, Each LED combines RGB + white chips and a driver IC in a single package, offering flicker-free dimming and consistent performance.
  • Flexible & Scalable Design:8x32 sk6812 matrix rgbw matrix, Standard one-wire data protocol allows easy daisy-chaining of multiple panels for larger displays.
  • Wide Compatibility:8x32 sk6812 matrix rgbw matrix, Works with Arduino, Raspberry Pi, ESP32, and common LED controllers (SP series, etc.).
  • Black PCB for High Contrast: 8x32 sk6812 matrix rgbw matrix, Black printed circuit board enhances color saturation and contrast, making colors appear more vivid.
  • Compact Form Factor: 8x32 sk6812 matrix rgbw matrix, layout (total 256 pixels) in a low-profile PCB, suitable for embedded and wall-mounted installations.
Technical Specifications
表格
Parameter
Details
Product Name
8x32 sk6812 matrix rgbw matrix
LED Type
SK6812 (addressable RGBW LED with integrated driver)
Pixel Count
256 (8 rows × 32 columns)
Operating Voltage
DC 5V 8x32 sk6812 matrix rgbw matrix
Control Protocol
1-wire digital signal (compatible with WS2812 protocol)
Color Depth
24-bit RGB + 8-bit white channel
PCB Type
Black rigid PCB (pixel grid layout)
Refresh Rate
High-speed PWM for smooth animations
Common Applications
  • Pixel Art & Signage: Custom text displays, animated signs, and decorative wall art with both color and white light options
  • Gaming & Home Decor: Gaming setup ambient lighting, mood panels, and dynamic backdrops with tunable white light
  • IoT & Smart Devices: Weather displays, notification indicators, and interactive installations with color/white light modes
  • DIY & Education: Arduino/ESP32-based projects, coding learning tools, and robotics
  • Event & Stage Lighting: Small dynamic pixel backdrops and accent effects with full color control
Usage Notes
  1. Power Requirements: Use a regulated 5V DC power supply. At full brightness, 256 pixels draw significant current (up to ~1.5A), so ensure the power supply meets the load.

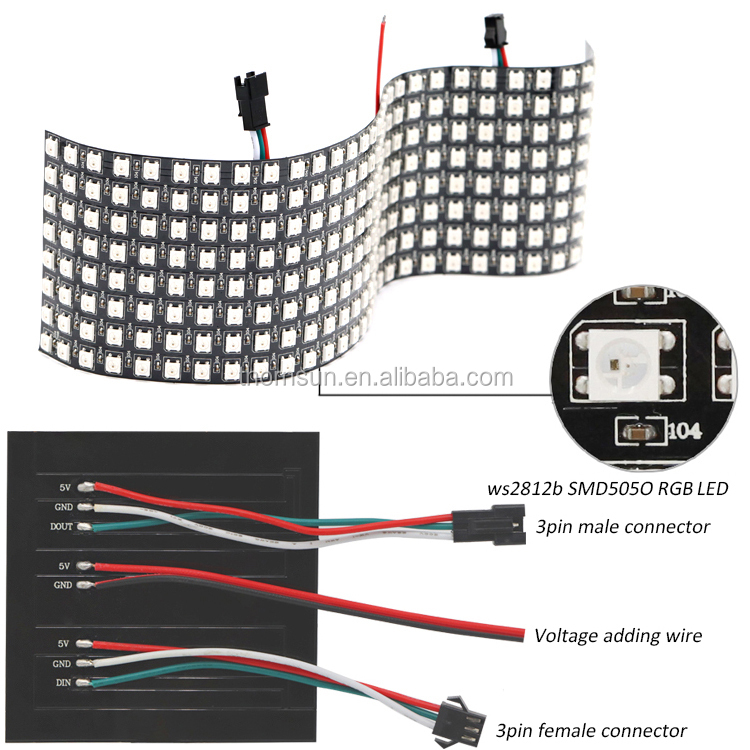

  2. Wiring: Connect the data line (DIN) to your controller’s signal pin. The panel includes both DIN and DOUT connectors for daisy-chaining multiple matrices. Always verify polarity before powering on.

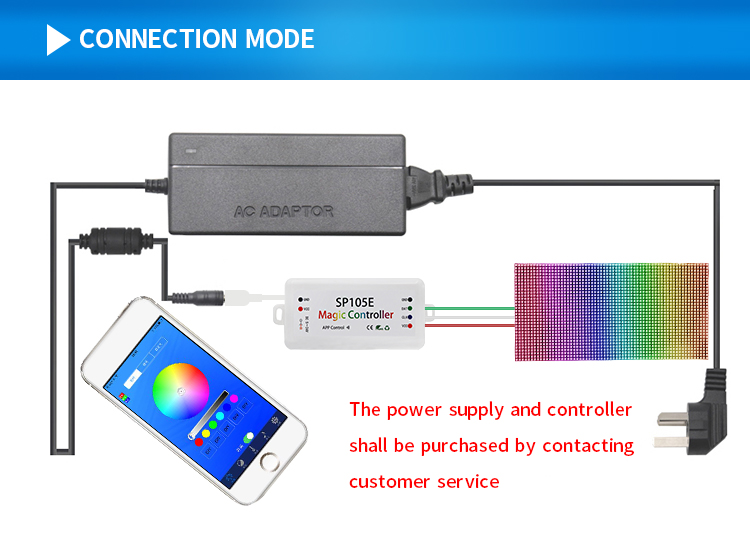

  3. Controller Compatibility: Use SK6812-compatible libraries (FastLED, Adafruit NeoPixel) with microcontrollers, or dedicated LED controllers (SP series) for plug-and-play use.
  4. Heat Management: The panel may get warm under full load; ensure adequate ventilation, especially in enclosed installations.
  5. Signal Integrity: For large chains of panels, use data repeaters or amplifiers to maintain signal stability across multiple matrices.
