matrix pixel screen

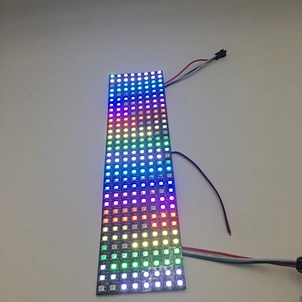

High Quality Flexible 8x32 Led matrix Addressable Ws2812b P10 Rgb Led matrix Panel

TS-ws2812-50-256
minimum order
1 piece
Quantity:
$15.00 - $20.00 / piece
Contact Now
add to cart
  • 8x32 led matrix pixel screen digital ws2812b panel
  • model number:TS-ws2812-50-256
  • brand name:TS
  • place of origin:Guangdong, China
  • color:rgb
  • function:SDK
  • Pixels:10mm
  • specification:Digital Poster
  • screen size:32 inch(81.28cm)
  • Color Temperature(CCT):Addressable
  • LED Quantity:256LEDs/m
  • Warranty:2years
  • IC chip:W2812B
  • PCB size:320*80mm
  • led chip:5050 R.G.B led chip
  • PCB Color:black PCB
  • LED signal:SPI
  • CRI:>80
  • Lamp Power:64W
  • Panel Size:8x32
  • Pixel Pitch:p10

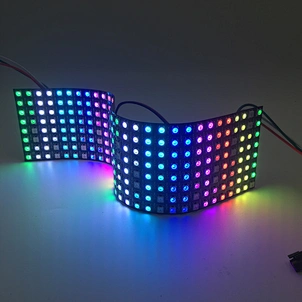

WS2812B Addressable LED Pixel Matrix Panels (Multi-Size Set)
Product Overview
This set includes three different-sized WS2812B matrix pixel screen , all featuring individually addressable RGB LEDs on a black PCB. These panels are ideal for building custom pixel displays, text scrollers, art installations, and dynamic lighting projects, offering flexible layout options for both small and large-scale setups.
Key Features
  • Multi-Size Set for Versatile Projects:
    • matrix pixel screen Small Panel: 8×8 pixels (64 LEDs)
    • matrix pixel screen Medium Panel: 16×16 pixels (256 LEDs)
    • matrix pixel screen Large Panel: 8×32 pixels (256 LEDs)(Pixel counts and dimensions are customizable to match your specific models)
  • Individually Addressable WS2812B LEDs: matrix pixel screen Each LED integrates a built-in driver IC, allowing independent control of color, brightness, and effects for dynamic patterns and animations.
  • Full RGB Color Depth: matrix pixel screen 24-bit true color support (16.7 million colors) for vivid gradients, smooth transitions, and vibrant visual effects.
  • Daisy-Chainable Design: Standard one-wire data protocol with input (DIN) and output (DOUT) connectors, making it easy to link multiple panels together for larger displays.
  • DC 5V Operation: Low-voltage, safe power input compatible with most microcontrollers (Arduino, ESP32, Raspberry Pi) and LED controllers.
  • Black PCB for High Contrast: Black printed circuit board enhances color saturation and contrast, making colors appear more vivid.
  • Pre-Wired Connectors: JST-style connectors for power and data, simplifying integration into your projects.
Technical Specifications
表格
Parameter
Details
LED Type
WS2812B addressable RGB LEDs
Set Includes
3 pixel matrices (small/medium/large sizes)
Typical Sizes
8×8, 16×16, 8×32 (customizable)
Total Pixels
64 / 256 / 256 (per panel)
Operating Voltage
DC 5V matrix pixel screen
Control Protocol
1-wire digital signal (WS2812B standard)
Color Depth
24-bit RGB (16,777,216 colors)
PCB Type
Black rigid PCB with uniform LED spacing
Connectors
JST power/data connectors for easy wiring
Common Applications
  • Pixel Art & Signage:matrix pixel screen  Custom text displays, animated signs, and decorative wall art
  • Gaming & Home Decor: matrix pixel screen Gaming setup ambient lighting, mood panels, and TV backlighting
  • IoT & Smart Devices: matrix pixel screen Weather displays, notification indicators, and interactive installations
  • DIY & Education:matrix pixel screen  Arduino/ESP32-based projects, coding learning tools, and robotics
  • Event & Stage Lighting:matrix pixel screen  Small dynamic pixel backdrops and accent effects
Usage Notes
  1. Power Requirements: Use a regulated 5V DC power supply. At full brightness, these panels draw significant current (up to ~60mA per LED), so ensure the power supply meets the total load of your setup.
  2. Wiring: Connect the DIN port to your controller’s data pin, and use the DOUT port to daisy-chain additional panels. Always verify VCC and GND polarity before powering on.
  3. Controller Compatibility: Use WS2812B-compatible libraries (FastLED, Adafruit NeoPixel) with microcontrollers, or dedicated LED controllers (SP series) for plug-and-play use.
  4. Heat Management: Panels may get warm under full load; ensure adequate ventilation, especially in enclosed installations.
  5. Signal Integrity: For long chains of panels, use data repeaters or amplifiers to maintain signal stability across multiple matrices.
