Sp630e Remote Control RGBIC/RGBCCT/RBGW/RBG/CCT LED Strip Controller DC5-24V 30M Range 600W Max Load ROHS Certified

SP630E

minimum order

1 piece

Quantity:

US$2.00 - US$6.00 / piece

Contact Now

add to cart

SP630E LED controller
Connection Mode:Common anode
Max. Load Power:600px
Type:Remote Control SP630E LED controller
Warranty(Year):2-Year
Brand Name:TS SP630E LED controller
Place of Origin:Guangdong, China
Feature:Easy Installation, Wireless Control, Durable
Lighting solutions service:Lighting And Circuitry Design, Project Installation
Luminous Efficacy(lm/w):100
Material:Plastic
Output:1 Channel, 3 Channels, 4 Channels, 2 channel, 5 channel
Output Current:6A, 12A
Product Weight（kg）:0.1
Remote Distance:30.0M
Static Power Consumption:1 W

Product Overview

TheSP630E LED Controller is a versatile, all-in-one solution designed to control both addressable (SPI) and single-color/RGB/RGBW LED lighting systems. Combining SPI signal control with 5-channel PWM dimming, it supports a wide range of LED strip types, making it ideal for both static and dynamic lighting projects. With built-in app control and a compact, easy-to-install enclosure, it delivers seamless, customizable lighting effects for home, commercial, and decorative applications.

SP630E LED controller Key Features

All-In-One Compatibility: Supports both addressable SPI LED strips (WS2811/WS2812/WS2813/SK6812, etc.) and 5-channel PWM control for RGB/RGBW/CCT (CW/WW) strips
Dual Control Modes: SPI signal output for dynamic pixel effects + 5-channel PWM dimming for static/color-tunable lighting
Wide Voltage Range: DC 5–24V input, compatible with most common LED power supplies
High-Current Output: 6A per channel, with a total maximum output of 12A for high-power LED loads
Built-In App Control: Connect via Bluetooth (QR code for quick setup) to adjust colors, brightness, and effects from your phone
Preset Lighting Effects: Pre-programmed patterns including chasing, fading, strobing, and music-sync modes (where supported)
Clear Terminal Layout: Labeled ports (VCC, R, G, B, CW, WW, DAT, GND) for straightforward wiring
Safety & Compliance: CE and FCC certified, with built-in protection against overcurrent, overvoltage, and short circuits
Compact & Mountable Enclosure: Durable plastic housing with mounting tabs for easy installation in any location

SP630E LED controller Specifications

Parameter	Details
Model	SP630E LED controller
Input Voltage	DC 5–24V SP630E LED controller
Output Current	6A per channel, max 12A total SP630E LED controller
Control Channels	1 SPI channel (addressable LEDs) + 5 PWM channels (R/G/B/CW/WW)
Supported LED Types	Addressable SPI LEDs (WS2811/WS2812/WS2813/SK6812, etc.) + RGB/RGBW/CCT LED strips
Control Interface	Bluetooth app control (via QR code pairing)
Working Temperature	-10°C to +60°C
Certifications	CE, FCC compliant
Enclosure	Durable plastic housing with mounting bracket

SP630E LED controller Common Applications

Home smart lighting (living rooms, bedrooms, kitchens)
Commercial decorative lighting (bars, cafes, retail displays)
Stage and event lighting setups
Automotive and marine LED accent lighting
DIY projects requiring both static and dynamic LED effects
Signage and backlighting applications

SP630E LED controller Usage Notes

Power Requirements: Use a regulated DC power supply matching your LED strip voltage (5V/12V/24V). Ensure the power supply’s total current rating meets or exceeds the LED load.

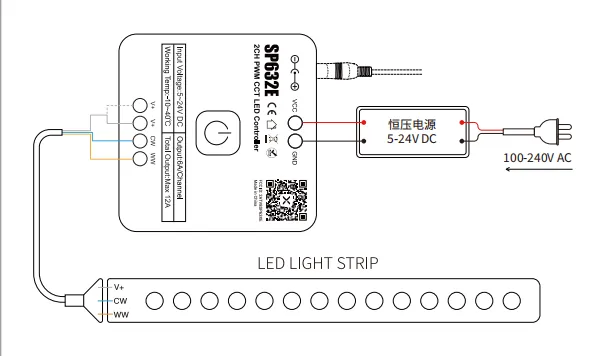

Wiring: Connect LED strips to the corresponding terminals (DAT for SPI strips, R/G/B/CW/WW for PWM strips). Verify VCC and GND polarity before powering on.
Current Limiting: Do not exceed the 12A total output to avoid overheating or damage. For high-power setups, use additional power injection for LED strips.
App Setup: Scan the QR code to download the control app, then pair the controller via Bluetooth. Follow the app instructions to select your LED type and desired effects.
Heat Dissipation: For continuous high-current use, ensure the controller is placed in a well-ventilated area to prevent overheating.
