RB3 2.4G RF Handheld Touch 4-zone Remote Controller Supports SP63XE and SP53XE Series Controllers

Holding Remote Control

minimum order

1 piece

Quantity:

US$2.00 - US$5.00 / piece

Contact Now

add to cart

RB3 remote smart remote control
Connection Mode:common anode
Max. Load Power:600px
Type:RB3 remote smart remote control
Warranty(Year):2-Year
Brand Name:TS RB3 remote smart remote control
Place of Origin:Guangdong, China
Feature:Easy Installation, Wireless Control, Durable
Lighting solutions service:Lighting And Circuitry Design, Project Installation
Luminous Efficacy(lm/w):100
Material:Plastic
Output:1 Channel, 3 Channels, 4 Channels, 2 channel, 5 channel
Output Current:6A, 12A
Product Weight（kg）:0.1
Remote Distance:30.0M
Static Power Consumption:1 W

SP630E All-In-One LED Controller + RB3 remote smart remote control - Product Introduction

Product Overview

TheSP630E SPI + 5CH PWM LED Controller with RB3 Remote is a complete, user-friendly lighting control solution for both addressable (SPI) and static LED systems. Combining versatile controller hardware with an intuitive RF remote, it supports seamless control of RGB, RGBW, CCT, and addressable LED strips. Perfect for home, commercial, and DIY projects, this all-in-one kit lets you customize colors, brightness, and effects with both app-based and physical remote control.

RB3 remote smart remote control Key Features

All-In-One LED Compatibility: Supports both addressable SPI LED strips (WS2811/WS2812/SK6812, etc.) and 5-channel PWM control for RGB/RGBW/CCT (CW/WW) lighting
Wide Voltage Compatibility: DC 5–24V input, compatible with all common LED power supplies
High-Current Output: 6A per channel, with a total maximum output of 12A for high-power LED loads
Dual Control Options: Bluetooth app control (via QR code pairing) + RB3 RF remote control
Built-In Safety Protections: Overcurrent, overvoltage, and short-circuit protection for reliable operation
Clear Terminal Layout: Labeled ports (VCC, R, G, B, CW, WW, DAT, GND) for quick, error-free wiring
Certified & Durable: CE and FCC compliant, with a compact, mountable enclosure for easy installation

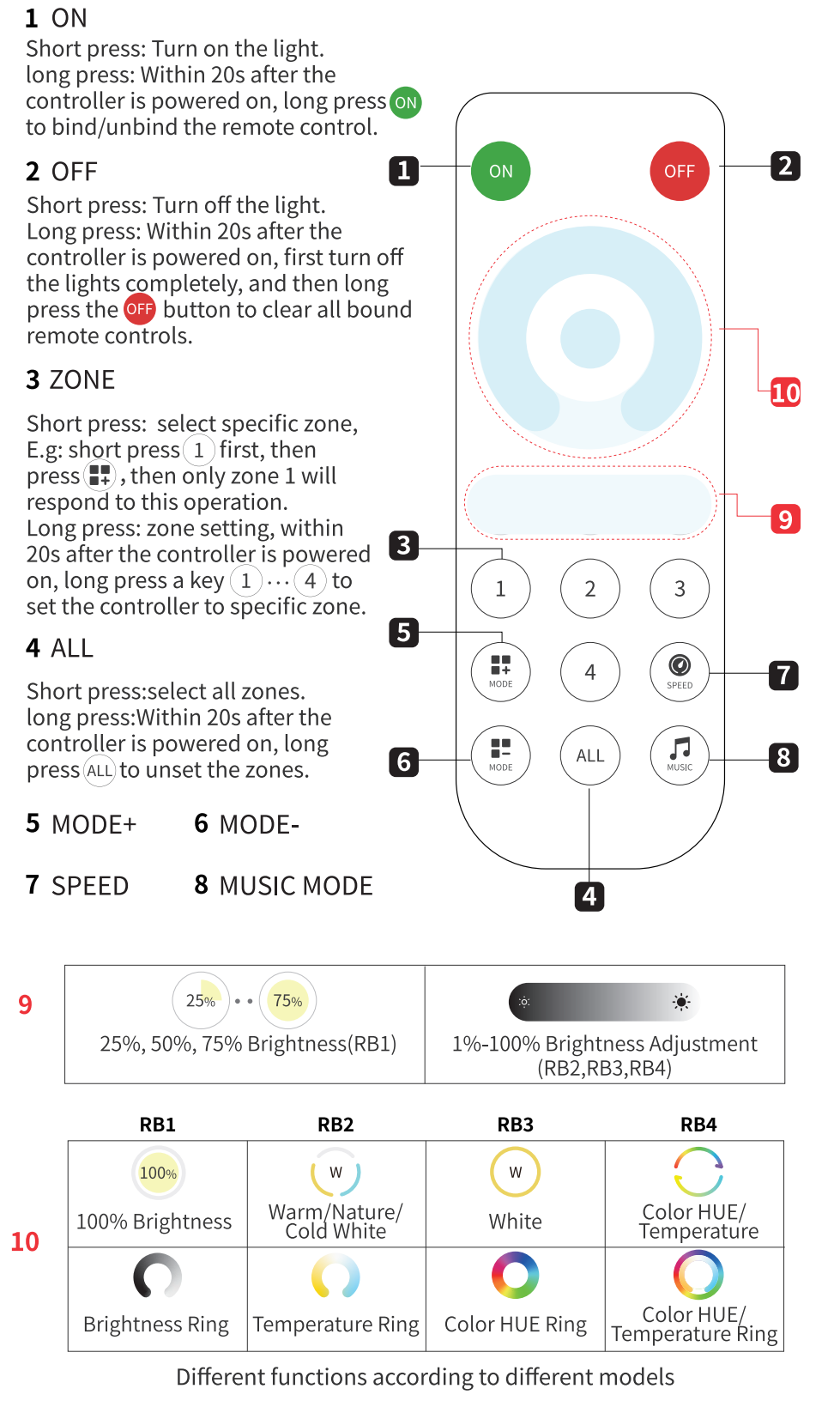

RB3 remote smart remote control Features

Full Function Control:
- ON/OFF buttons for power management
- Color wheel for instant RGB color selection
- Brightness slider for smooth dimming
- Numbered keys (1-3) for quick preset effect recall
- MODE buttons to switch between static, dynamic, and music modes
- SPEED control for adjusting the pace of dynamic effects
- MUSIC mode key for sound-reactive lighting sync
- ALL key for universal control in multi-zone setups
Wireless RF Operation: Reliable control from a distance, even through obstacles
Ergonomic Design: Slim, lightweight remote with clearly labeled buttons for easy use
Long Battery Life: Low-power design for extended daily use

Technical Specifications

表格

Parameter	Details
Controller Model	RB3 remote smart remote control
Remote Model	RB3 remote smart remote control
Input Voltage	DC 5–24V RB3 remote smart remote control
Output Current	6A per channel, max 12A total
Control Channels	1 SPI channel (addressable LEDs) + 5 PWM channels (R/G/B/CW/WW)
Supported LED Types	Addressable SPI LEDs + RGB/RGBW/CCT LED strips
Control Interfaces	RB3 remote smart remote control
Controller Working Temp	-10°C to +60°C
Certifications	CE, FCC compliant

RB3 remote smart remote control Common Applications

Smart home lighting (living rooms, bedrooms, kitchens)
Commercial decor (bars, cafes, retail displays, event venues)
Automotive and marine accent lighting
DIY projects with both static and dynamic LED effects
Signage, backlighting, and stage lighting setups

RB3 remote smart remote control Usage Notes

Wiring: Connect the LED strips to the corresponding controller terminals (DAT for SPI strips, R/G/B/CW/WW for PWM strips). Always verify VCC and GND polarity before powering on.
Power Requirements: Use a regulated DC power supply matching your LED strip voltage (5V/12V/24V). Ensure the power supply’s total current rating meets or exceeds the LED load.
Remote Pairing: The RB3 remote is pre-paired with the controller for immediate use. Follow the manual to re-pair if needed.
Current Safety: Do not exceed the 12A total output to avoid overheating. For high-power setups, use power injection for long LED strips.
Heat Dissipation: For continuous high-current use, keep the controller in a well-ventilated area.

RB3 remote smart remote control handheld control snesor
