SD Card K-8000C Digital Programming Article LED Lights Controller

TS-t-4000C

minimum order

1 piece

Country of Origin

shenzhen

Quantity:

US$98.00 - US$108.00 / piece

Contact Now

add to cart

k-8000c controller
Max. Load Power:8W
Type:k-8000C SD Card LED Controller
Brand Name:TS
Place of Origin:Guangdong, China
Support IC::ws2811/ws2801/ucs1903/sm16716/lpd6803/lpd8806/p9813 etc
Memory Card:SD Card
Capacity::256MB -2GB
Support Pixels::8192pixels max
Control::Off-oline control
Voltage:AC110-220V
led light chain controler

K-8000C LED Pixel Controller - Product Introduction

Product Overview

The k-8000c controller is a professional standalone DMX/SPI controller designed for large-scale addressable LED installations. With built-in SD card support, multi-channel output, and compatibility with a wide range of LED ICs, it enables complex, pre-programmed light shows for architectural facades, theme parks, stage backdrops, and commercial displays.

Key Features

8 Independent Output Channels: k-8000c controller Supports up to 8 separate SPI output ports, each driving a large number of pixels for expansive installations.
Massive Pixel Capacity: k-8000c controller Controls up to 8192 pixels (total) across all channels, making it ideal for large-scale projects.

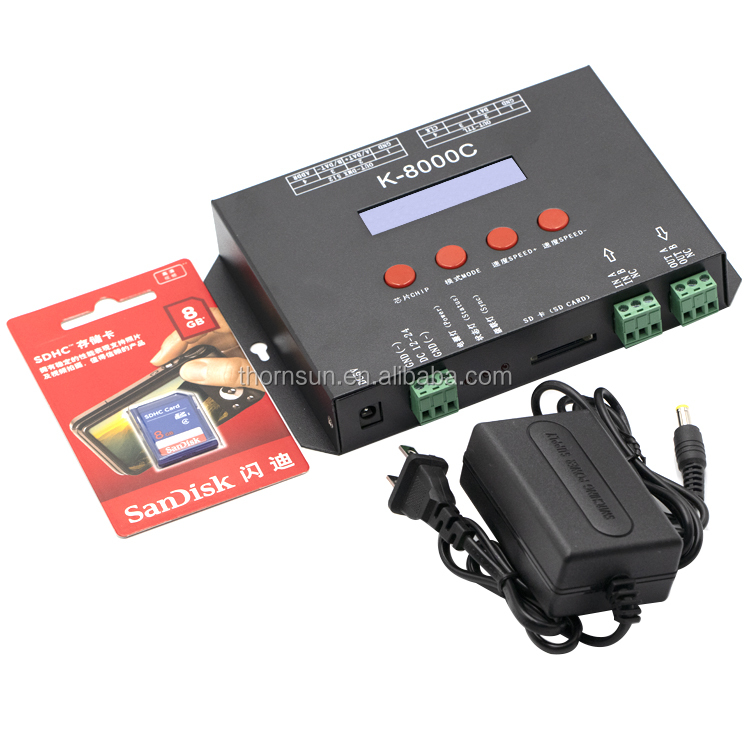

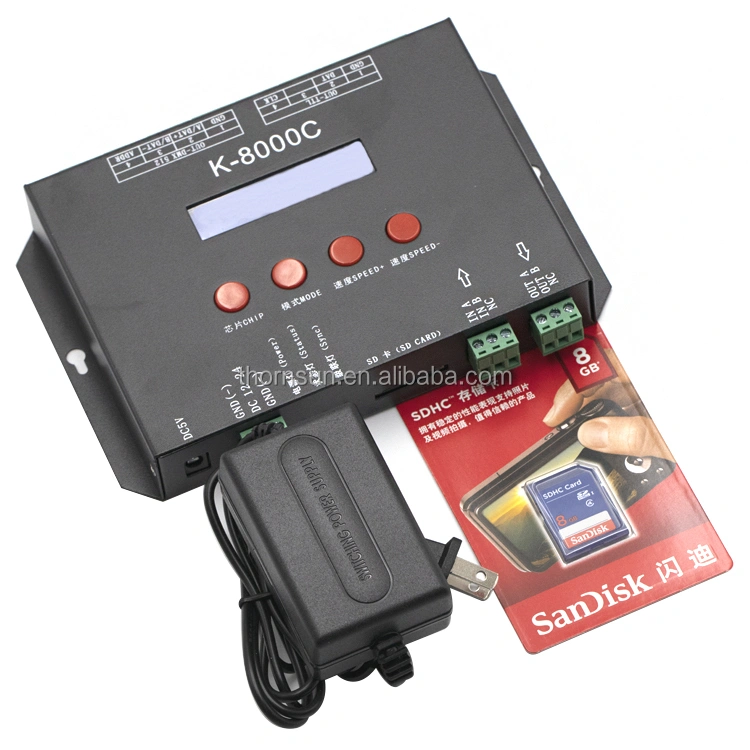

SD Card Program Storage: Stores light show data on an SD card, allowing you to pre-program and run custom animations without a computer.
Broad LED IC Compatibility: Supports most common addressable LED drivers, including WS2811, WS2812B, UCS1903, TM1804, APA102, and more.

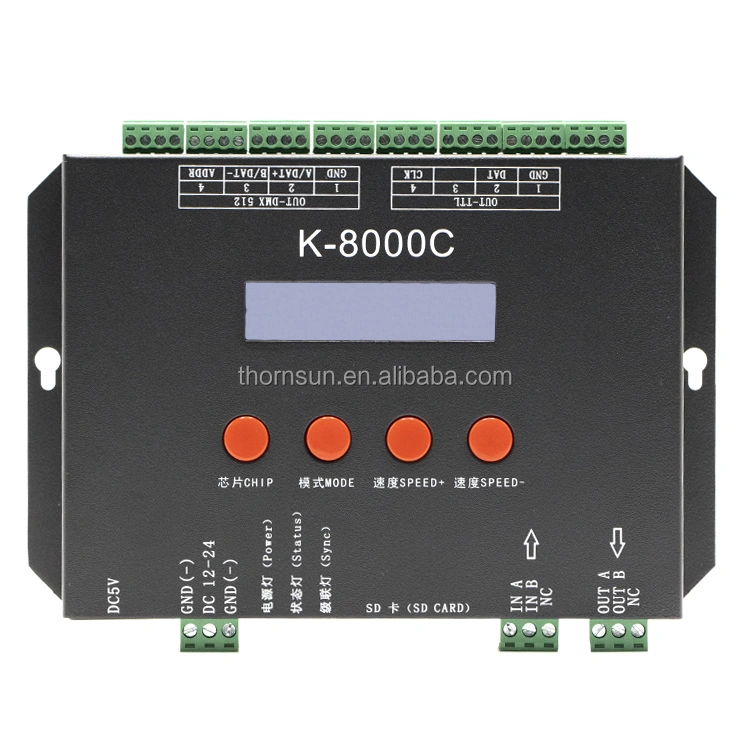

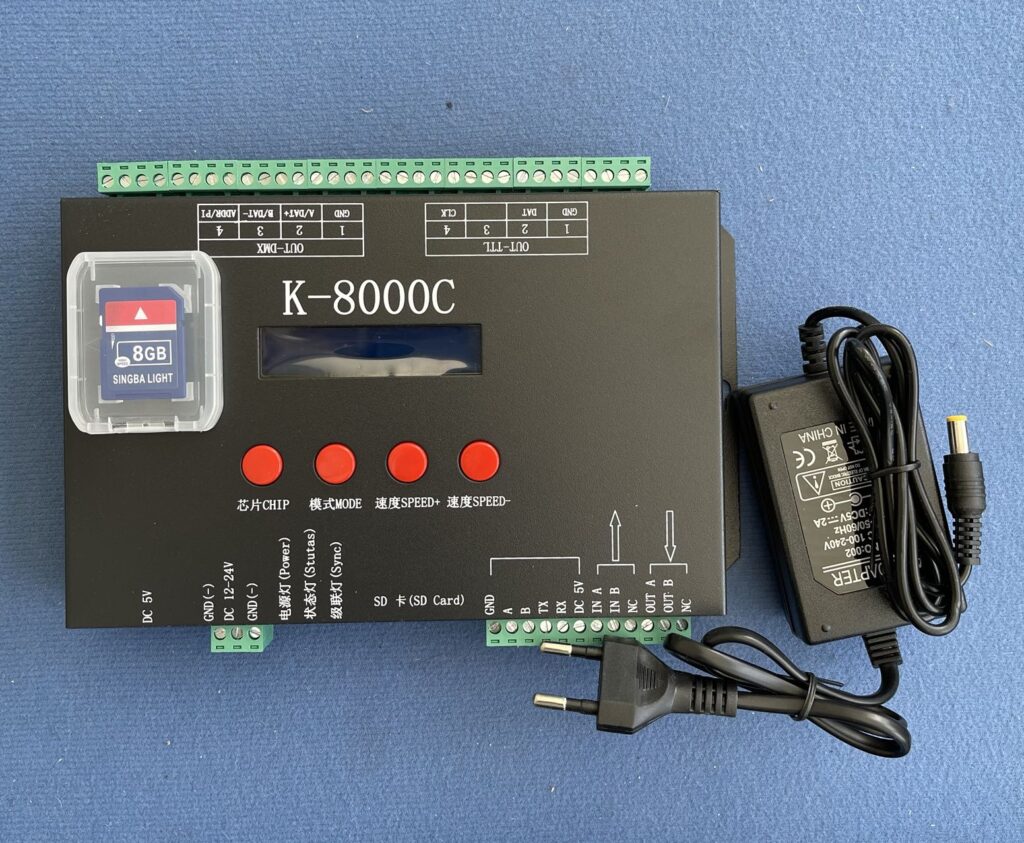

LCD Display & Keypad Control: On-board LCD screen and physical buttons (Chip/Mode/Speed+) for easy setup, mode selection, and speed adjustment.
Multiple Control Modes:
- Standalone mode: Runs pre-programmed effects directly from the SD card.
- DMX512 mode: Accepts DMX signals for integration with professional lighting consoles.
Wide Power Input: DC5V / DC12–24V dual power input options, suitable for different system setups.

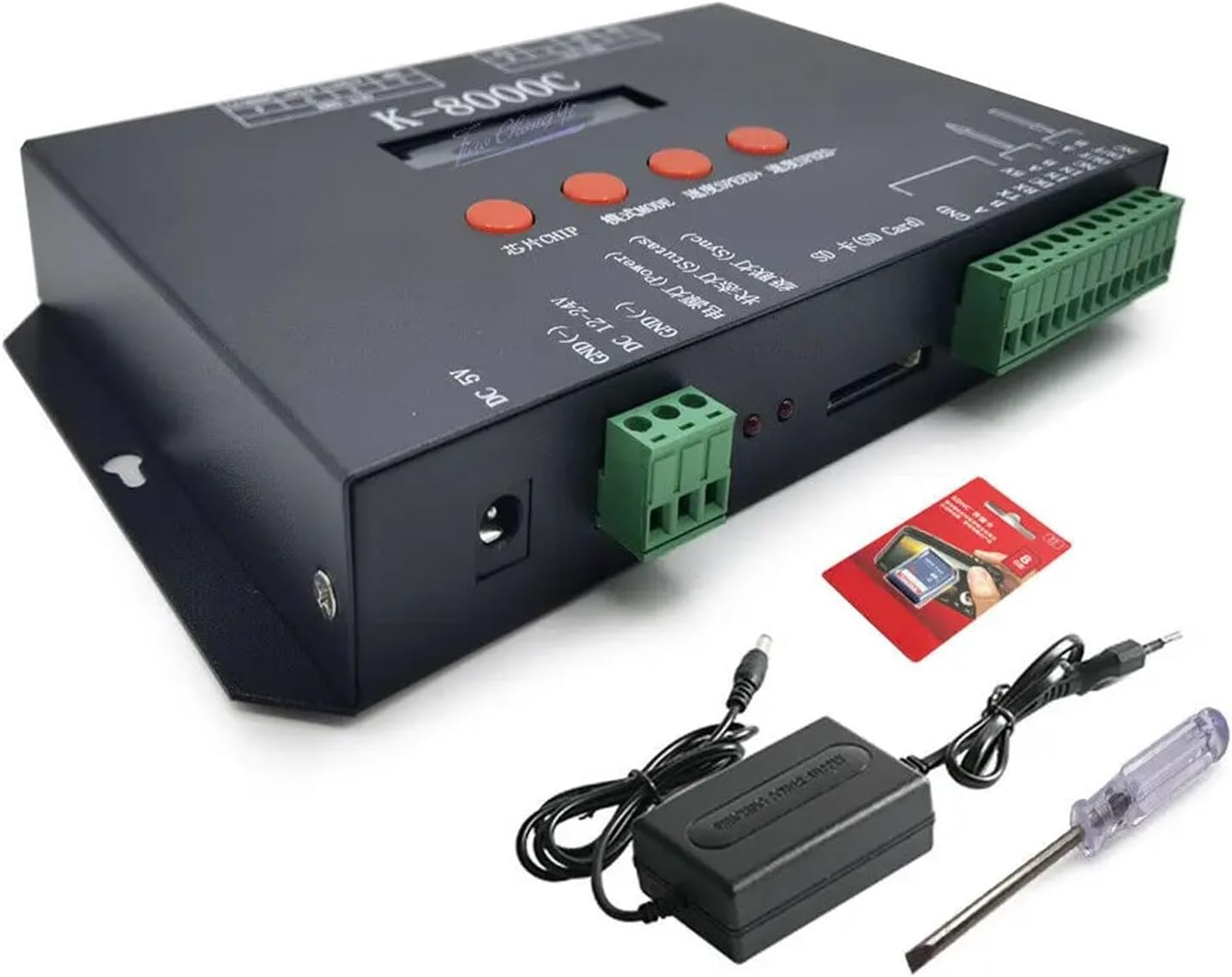

Sturdy Industrial Design: Black metal enclosure with terminal blocks for secure wiring, ideal for commercial and outdoor use.

Technical Specifications

表格

Parameter	Details
Model	k-8000c controller
Type	8-Channel LED Pixel Controller k-8000c controller
Power Input	DC5V / DC12–24Vk-8000c controller
Output Channels	8 independent SPI channels k-8000c controller
Max Pixel Count	8192 pixels (total) k-8000c controller
Storage	SD card (up to 4GB, included in the image) k-8000c controller
Interfaces	SPI output terminals, DMX512 input, power terminals k-8000c controller
Controls	LCD display + 4-button keypad (Chip/Mode/Speed+/Speed-)
Supported LEDs	WS2811/WS2812B/UCS1903/TM1804/APA102 and most common SPI ICs
Operating Temperature	-20°C ~ +60°C

Common Applications

Large-scale architectural facade lighting and building outlines
Theme park, amusement park, and public space decorative lighting
Stage, concert, and event pixel backdrops and LED displays
Shopping mall, commercial center, and hotel lighting installations
Art installations, 3D light sculptures, and interactive exhibits

Usage Notes

Programming: Prepare light show data using compatible PC software, then save the program to an SD card for standalone playback.

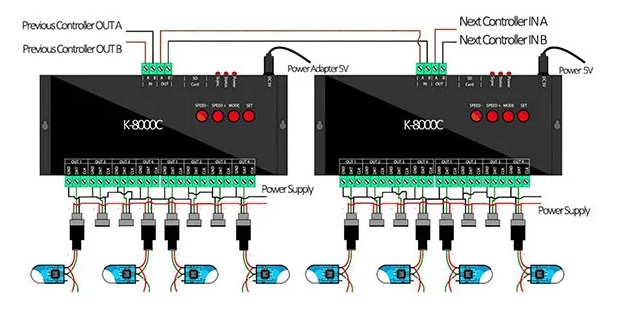

Wiring: Connect each output channel to your LED strips, ensuring correct polarity and matching the LED IC type selected in the controller settings.
Power Requirements: Use a regulated DC power supply matching your setup (5V or 12–24V). For large installations, distribute power at intervals to avoid voltage drop.
DMX Integration: Connect the DMX512 input to your lighting console and configure the DMX address to sync with your show programming.
Installation: Mount the controller in a well-ventilated area to ensure heat dissipation. Keep it away from water and high-humidity environments unless additional protection is used.
