Sp107e controller

RF Remote Rgb Led Strip Light Controller Sp107e Usb Control Led Strip Controller

TS-SP107E
minimum order
1 piece
Quantity:
US$8.00 - US$8.00 / piece
Contact Now
add to cart
  • Sp107e controller
  • Color Temperature(CCT):RGB
  • Control Mode:App Control, Voice Control
  • Model Number:TS-Sp107e controller
  • Brand Name:TS Sp107e controller
  • Place of Origin:Guangdong, China
  • Application:Landscape
  • Certification:CE, RoHS
  • Connectivity technology:Bluetooth
  • Input Voltage(V):DC5-24v Sp107e controller
  • IP Rating:IP55, IP20
  • Lamp Body Material:PVC
  • Lamp Luminous Flux(lm):100lm
  • Lighting solutions service:Lighting And Circuitry Design, Project Installation
  • Support Dimmer:Yes
  • Warranty(Year):2-Year
  • Working Temperature(℃):-30 - 50
  • Item Type:led strip comtroller
  • Voltage:DC5-24V
  • Warranty:2years
  • Lamp Power:1W/M
  • Luminous Efficacy(lm/w):120
Sp107e controller

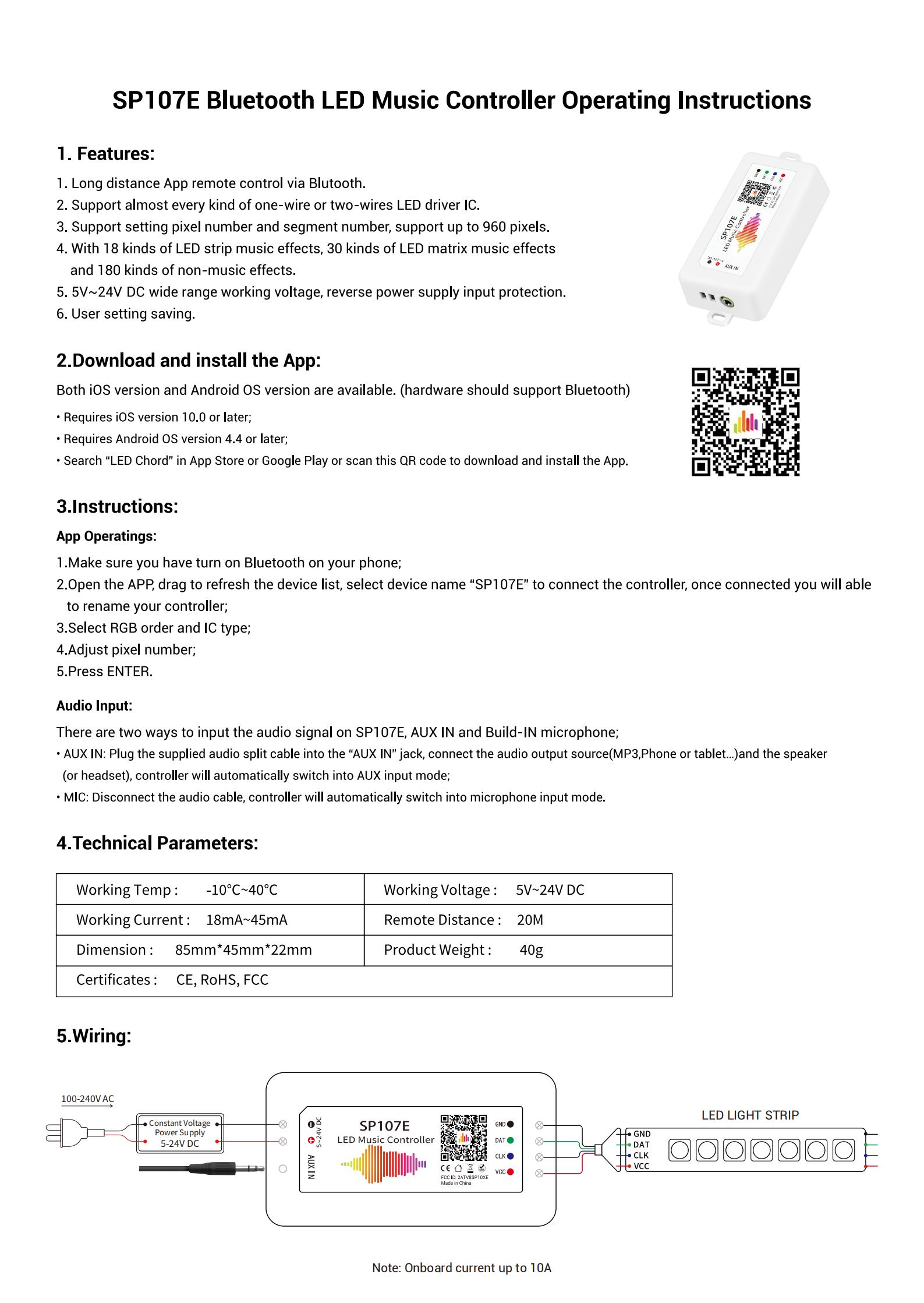

Product Overview
TheSSp107e controller is a smart, music-activated control unit designed for addressable RGB LED strips. It brings lighting to life by syncing effects with audio, creating dynamic, sound-reactive visuals perfect for parties, gaming setups, home theaters, and commercial spaces. With Bluetooth connectivity, AUX input, and a dedicated app, it offers seamless customization of colors, patterns, and music modes.
Key Features
  • Music-Reactive Control: Sp107e controller Built-in microphone and AUX audio input let LED effects respond in real time to music beats, volume, and audio frequencies
  • Bluetooth App Control: Sp107e controller pair with your smartphone via Bluetooth to customize colors, brightness, speed, and effect patterns using the dedicated app
  • Wide LED Compatibility: Sp107e controller Supports most common addressable LED strips (WS2811, WS2812B, SK6812, APA102, and more)
  • Dual Audio Modes:
    • Mic Mode: Sp107e controller Reacts to ambient sound using the built-in microphone
    • AUX Mode: Sp107e controller Syncs directly with external audio sources via the 3.5mm AUX input
  • Multiple Dynamic Effects:Sp107e controller  Pre-programmed music modes, color cycles, static colors, and chase effects
  • Wide Voltage Compatibility: Sp107e controller DC 5–24V input, compatible with most standard LED power supplies
  • Clear Terminal Layout: Labeled ports (VCC, CLK, DAT, GND) for easy wiring and setup
  • Compact & Durable Housing: White plastic enclosure with mounting tabs for secure installation
Technical Specifications
表格
Parameter
Details
Model
SP107E
Type
LED Music Controller
Input Voltage
DC 5–24V
Audio Input
Built-in microphone + 3.5mm AUX port
Control Channels
DAT (data) + CLK (clock) for SPI LED strips
Supported LEDs
WS2811/WS2812B/SK6812/APA102 and compatible addressable LED strips
Connectivity
Bluetooth (for app control)
Certifications
CE, RoHS compliant
Operating Temperature
-20°C ~ +60°C
Common Applications
  • Home theater and gaming room ambient lighting
  • Party, DJ booth, and event lighting setups
  • Bars, cafes, and restaurant decorative lighting
  • Car audio and interior accent lighting
  • DIY music-reactive LED projects and art installations
Usage Notes
  1. Wiring: Connect the LED strip to the controller’s DAT, CLK, VCC, and GND terminals. Always verify polarity before powering on.
  2. Audio Setup: Choose between Mic mode (ambient sound) or AUX mode (direct audio connection) in the app settings.
  3. Power Requirements: Use a regulated DC power supply matching your LED strip voltage (5V/12V/24V). Ensure the power supply’s capacity meets or exceeds the total LED load.
  4. App Pairing: Scan the QR code to download the control app, then pair the controller via Bluetooth to customize settings.
  5. Installation: Mount the controller in a location with clear access to sound (for mic mode) or near your audio source (for AUX mode). Ensure proper ventilation to prevent overheating.
