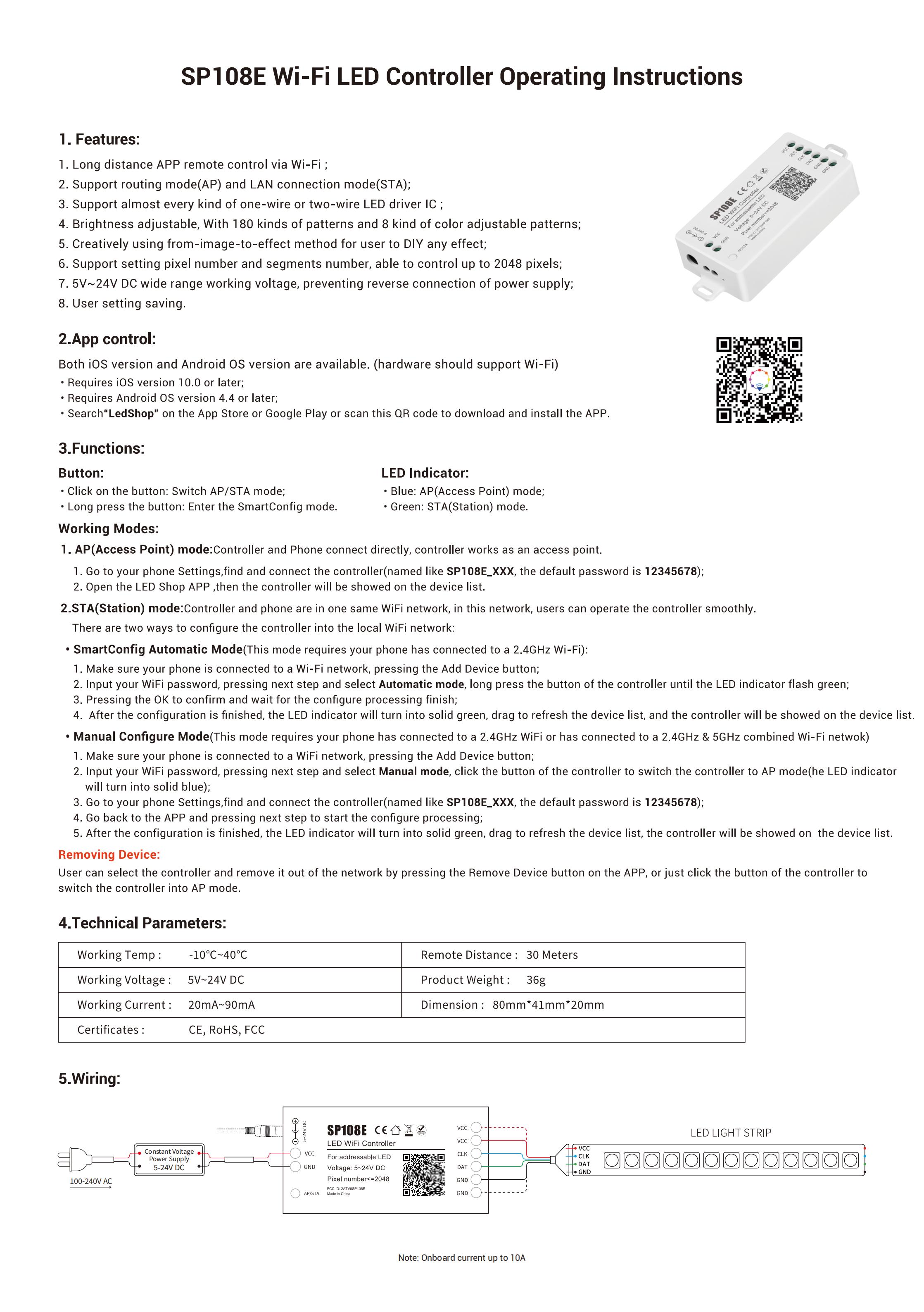

  • SP108E LED Controller - Product Introduction
    Product Overview
    TheSP108E LED Controller is a high-performance, multi-functional addressable LED controller designed for smart lighting projects. It supports a wide range of common digital LED strips and offers flexible control via multiple methods, making it ideal for both home and commercial lighting applications.
    Key Features
  • Broad LED Compatibility: SP108E LED Controller Works with most one-wire addressable LED ICs including WS2811, WS2812B, SK6812, APA102, TM1804, UCS1903, and more.
  • Multiple Control Options:
    • Bluetooth App Control: Customize colors, brightness, effects, and speed directly from your smartphone.
    • RF Remote Control: SP108E LED Controller Pair with a compatible RF remote for convenient, line-of-sight operation.
    • Music Sync Mode: Built-in microphone lets LED effects pulse and change in real time to music beats.
  • Rich Effects Library: SP108E LED Controller Includes hundreds of pre-programmed dynamic patterns (chasing, breathing, rainbow, static colors) and adjustable speed/brightness.
  • Wide Voltage Input: SP108E LED Controller DC 5–24V, compatible with all common LED power supplies.
  • High Pixel Capacity:sp108e led controllerSupports a large number of LEDs (typically up to 2048 pixels) for large-scale installations.
  • Compact & Reliable Design: Small form factor with clear terminal labels (VCC, DAT, CLK, GND) for easy wiring.
  • Safety & Compliance: SP108E LED Controller Built-in overvoltage, overcurrent, and short-circuit protection; CE and RoHS certified.
  • Technical Specifications
    表格
    Parameter
    Details
    Model
    sp108e led controller2
    Type
    Addressable LED Strip Controller
    Input Voltage
    DC 5–24V
    Output
    1 data channel (supports SPI/1-wire protocols)
    Max Load
    Up to 2048 pixels (model-dependent)
    Control Modes
    Bluetooth App, RF Remote, Music Sync
    Supported LEDs
    WS2811/WS2812B/SK6812/APA102/UCS1903/TM1804, etc.
    Operating Temperature
    -20°C ~ +60°C
    Certifications
    CE, RoHS
    Common Applications
  • sp108e led controller2Smart home ambient lighting (living rooms, bedrooms, gaming setups)
  • Commercial decor (bars, cafes, retail displays, event venues)
  • Automotive accent lighting (car underglow, interior lights)
  • Stage lighting, DJ booths, and party setups
  • DIY LED projects, signboards, and art installations
  • Usage Notes
  • Wiring: Connect the LED strip’s data line to the controller’s DAT terminal. For clocked LEDs (APA102), connect the clock line to CLK. Always verify VCCandGND polarity before powering on.
  • Power Supply: Use a regulated DC power supply matching your LED strip voltage (5V/12V/24V). Ensure the power supply’s wattage meets or exceeds the total LED load.
  • App Setup: Download the dedicated app, then pair the controller via Bluetooth to select your LED IC type and configure effects.
  • Music Mode: Ensure the controller’s built-in microphone is not covered to allow clear audio pickup for sound-reactive effects.
  • Long Strips: For installations with more than 5 meters of LED strip, use power injection at intervals to prevent voltage drop.
