5CH PWM LED Strip Controller SPI CCT APP Dimmer with 6A Control Wireless Control up to 5-24V DC

SP-530E

minimum order

1 set

Quantity:

US$8.00 - US$18.00 / set

Contact Now

add to cart

sp530e Controller remote app
Connection Mode:WIFI sp530e Controller remote app
Max. Load Power:288W
Type:Remote Control sp530e Controller remote app
Warranty(Year):1-Year
Brand Name:TS sp530e Controller remote app
Place of Origin:Guangdong, China
Feature:Wireless Smart Control
Lighting solutions service:Lighting And Circuitry Design, Dialux Evo Layout, Auto Cad Layout
Luminous Efficacy(lm/w):80
Material:ABS
Output:5 channel
Output Current:8 A
Product Weight（kg）:0.2
Remote Distance:30m
Static Power Consumption:1 W

sp530e Controller remote app - Product Introduction

sp530e Controller remote app Product Overview

TheSsp530e Controller remote appis a powerful all-in-one solution for controlling both addressable SPI LED strips and static RGB/RGBW/CCT lighting systems. Designed for smart home integration, it combines WiFi, Bluetooth, and RF connectivity with SPI + 5-channel PWM control, allowing you to customize your lighting via smartphone app, voice assistants, or remote control. It’s ideal for everything from simple accent lighting to complex, dynamic LED installations.

sp530e Controller remote app Key Features

All-In-One Compatibility:
- 1 SPI channel for addressable pixel LEDs (WS2811, WS2812B, SK6812, etc.)
- 5 PWM channels (R/G/B/CW/WW) for RGB, RGBW, and CCT tunable white strips
Multi-Connectivity Support:
- WiFi for smart home and app control
- Bluetooth for direct pairing and music sync
- RF remote compatibility for instant, line-of-sight control
High-Current Output: 6A per channel, with a total maximum output of 12A, supporting high-power LED loads
Smart Home Ready: Works with voice assistants (via app integration) for hands-free control
Music & Sound Reactive: Built-in microphone for audio sync effects, letting lights pulse to music beats
Wide Voltage Compatibility: DC 5–24V input, compatible with most common LED power supplies
User-Friendly Design:
- QR code for quick app pairing
- Physical power button for direct control
- Clearly labeled screw terminals (VCC, R, G, B, CW, WW, DAT, GND)
- Includes a screwdriver for easy wiring
Safety Certified: CE and FCC compliant, with built-in overcurrent, overvoltage, and short-circuit protection

Technical Specifications

表格

Parameter	Details
Model	sp530e Controller remote app
Type	IoT LED Controller (SPI + 5CH PWM All-in-One)
Input Voltage	DC 5–24V sp530e Controller remote app
Output Current	6A per channel, max 12A total
Control Channels	1 SPI + 5 PWM (R/G/B/CW/WW)
Connectivity	WiFi + Bluetooth + RF (remote ready)
Working Temperature	-10°C ~ +60°C
Certifications	CE, FCC
Supported LEDs	Addressable SPI LEDs + RGB/RGBW/CCT LED strips

sp530e Controller remote app Common Applications

Smart home lighting (living rooms, bedrooms, kitchens, gaming setups)
Commercial decor (bars, cafes, retail displays, event venues)
DIY projects with both static and dynamic LED effects
Voice-controlled ambient lighting systems
Music-reactive stage and party lighting

sp530e Controller remote app Usage Notes

Wiring: Use the included screwdriver to connect LED strips to the labeled terminals (DAT for SPI strips, R/G/B/CW/WW for PWM strips). Always verify VCC and GND polarity before powering on.
Power Requirements: Use a regulated DC power supply matching your LED strip voltage (5V/12V/24V). Ensure the power supply’s wattage meets or exceeds the total LED load.

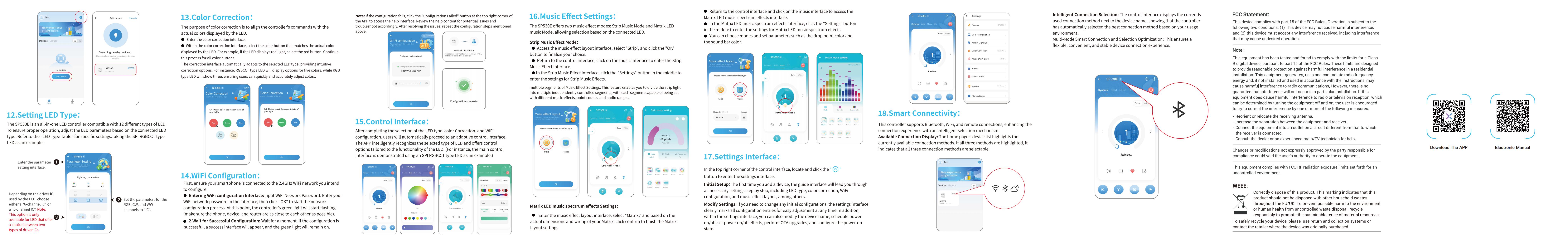

App Setup: Scan the QR code to download the control app, then pair the controller via WiFi/Bluetooth. Follow the in-app instructions to select your LED type and desired effects.
Current Safety: Do not exceed the 12A total output to avoid overheating. For long LED strips, use power injection to maintain brightness.
Heat Dissipation: Install the controller in a well-ventilated area, especially when running at high current.
